Manticore High Power Metal Detector

Manticore High Power Metal Detector



MANTICORE with Multi-IQ+ multi-frequency is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. Minelab MANTICORE metal detector is an unrivalled treasure-seeking experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.



 MULTI-IQ+ MULTI-FREQUENCY
Multi-IQ+ is the newest generation Simultaneous Multi-Frequency engine from Minelab, building on the success of the original Multi-IQ. Multi-IQ+ transmits more power through the coil at a wider range of operating frequencies, to light up more targets in the ground. It has completely revamped signal processing providing enhanced discrimination, greater Target ID resolution, improved target separation, and gives you a greater ability to tune discrimination and audio to suit your detecting conditions.

MORE POWER. MORE DEPTH. MORE FINDS.

FAST RESPONSE
Find desired targets amongst ferrous trash like no other metal detector on the market with MANTICORE’s exceptional target separation performance. Minelab MANTICORE is the fastest, most powerful metal detector yet.

ENHANCED DISCRIMINATION
Exceeding expectations with every swing, Minelab MANTICORE delivers improved Target ID stability and close target separation. With customizable Ferrous Limits you have unprecedented control to accept ferrous coins, reject complex ferrous targets, or dial in maximum target unmasking in iron.

LIGHT AND COMPACT
1.3 kg / 2.9 lb with an extended length of 1440 mm / 56.7 and a collapsible length of 630 mm / 24.8 inch.

ULTIMATE SEARCH MODES
MANTICORE metal detector delivers 10 customizable Search Modes including All-Terrain optimized for inland detecting; Beach optimized for sand, surf and seawater zones; and Goldfield optimized for detecting gold nuggets.

AUDIO YOUR WAY
Take control of audio with MANTICORE. Hear target information the way you like it via superior audio controls including customizable target tones, suppression of Electromagnetic Interference (EMI) chatter and Continuous Pitch (VCO) audio with ferrous tones and genuine threshold detection tone.

UNRIVALLED CONSTRUCTION & EXTREME WATERPROOFING
No terrain is off limits with MANTICORE — dive up to 5 m (16 ft) for underwater exploration (IP68 Rating) with this waterproof metal detector to find hidden targets others can’t reach.

INTUITIVE CONTROL

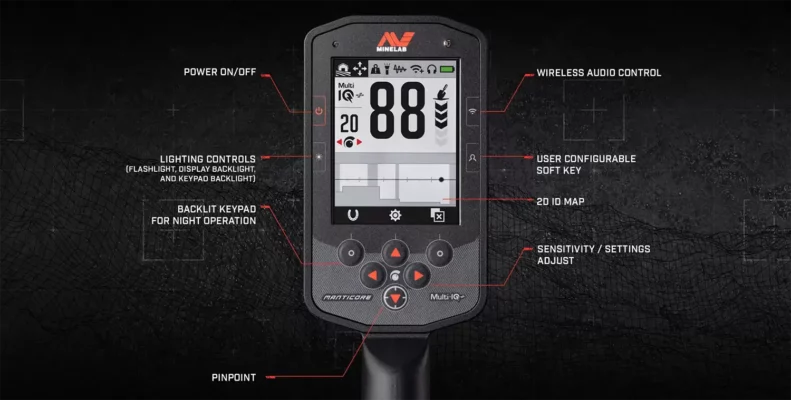

Having cutting-edge technology inside our Minelab machines is only half the story. Making MANTICORE’s power easy to access is equally as important. That’s why MANTICORE features a large colour screen and delivers the most intuitive user experience ever found on a detector.

BOOSTED EMI IMMUNITY
There may be a storm raging outside but inside MANTICORE it’s quiet and calm. Improved EMI rejection means it’s possible to operate using higher sensitivity whilst isolating target information — even in the most challenging environmental conditions.

LIGHTING & VIBRATION
The daylight may have ended, but that doesn’t mean your hunt has to. With Control Pod Flashlight, Display Backlight with Auto Adjust, and Backlit Keypad, plus Handgrip Vibration, you can power on long after the sun has gone.



In the Box:



Minelab Manticore Metal Detector

M11 11-inch round Double-D coil with skidplate

USB Charging Cable

5x Screen Protectors

Minelab ML-105 wireless low latency headphones (non waterproof)

3.5 mm Headphone Audio Cable

Headphone Case



Specifications

Detect Modes (Customisable): All-Terrain (5), Beach (4), Goldfield (1)

Operating Frequencies: Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz

Noise Cancel: Auto, Continuous Auto, Manual (-9 to +9)

Ground Balance: Auto, Manual, Tracking

Sensitivity: 1 to 35

Target Identification: Conductive: 0-99 with ferrous indication

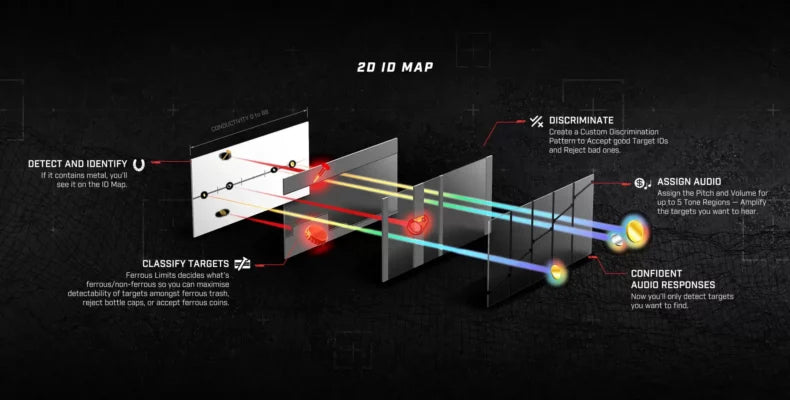

2D ID Map: Two-Dimensional ID Map System with Target Trace

Target Tones: 1, 2, 5 – Tone | 1, 2, 5 – Region All Tones

Target Volume: 0 to 25

Target Pitch: 1 to 50

Ferrous Volume: 0 to 25

Ferrous Pitch: 1 to 50

Audio Themes: Normal, Enhanced, Continuous Pitch

Volume Profiles: Simple, Medium, Rich

Threshold Level: 0 to 25

Threshold Pitch: 1 to 50

Recovery Speed: 0 to 8

Ferrous Limits: Upper: 0 to 14 | Lower: 0 to 9

Ferrous Limits: Custom 1 to 4

Shortcuts: Soft Keys: 2 (Action Bar), 1 (User Button)

Depth Indicator: 5 levels

Shaft System: 3-piece highly collapsible carbon-fibre

Extended Length: 1440 mm / 56.7 inch

Collapsed Length: 630 mm / 24.8 inch

Weight: 1.3 kg / 2.9 lb

Standard Coil (M11): 11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)

Audio Output: Speaker | 3.5 mm (1/8″) headphones | Wireless low latency headphones

Headphones (Included): Minelab ML-105 wireless low latency headphones (non waterproof)

Display: Colour LCD

Display Backlight: Manual (1 to 10), Auto Adjust

Keypad Backlight: On, Off

Flashlight: Low, Medium, High, Off

Handgrip Vibration: On, Off

Battery: Internal rechargeable Lithium-ion battery

Battery Runtime: Approx. 9 hours

Battery Charge Time: Approx. 7 hours

Waterproof: Waterproof to 5 m / 16 ft, IP68

Key Technologies: Multi-IQ+ (High Power Simultaneous Multi-Frequency)

Software Upgradable: Yes, via USB connection (Windows or Mac OS compatible)

Warranty: 3 years
